Description
Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:

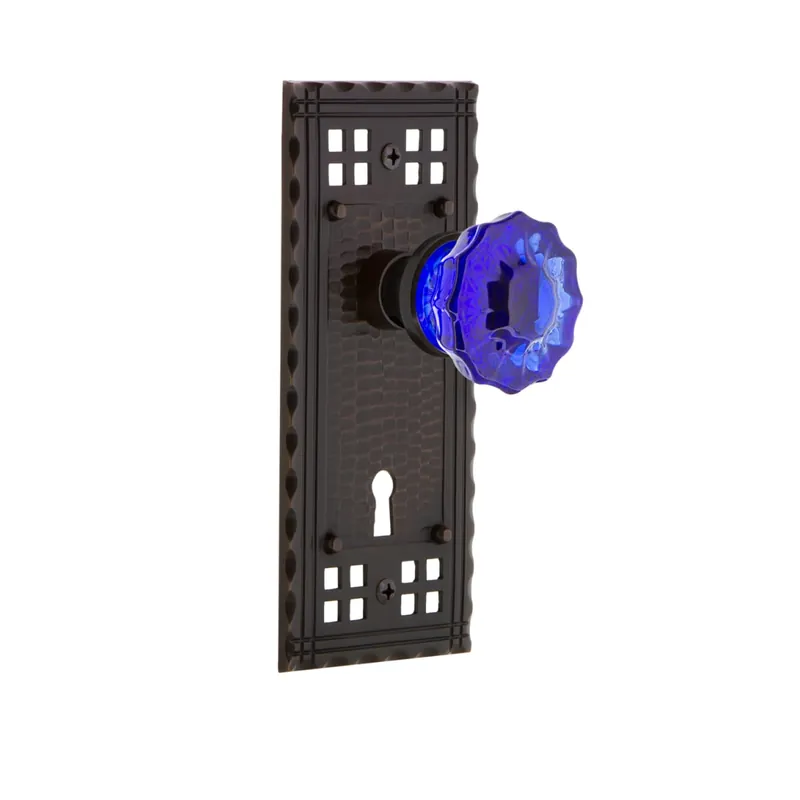

- Solid brass backplate with lead crystal door knob for detail and clarity
- Handing is reversible for left or right handed doors
- Perfect for restoration projects and easy to install on modern pre-drilled doors
- Includes a 2-3/4″ backset and square corner latch
- Covered by a 5 year limited warranty
- Does not meet criteria of the American’s with Disabilities Act (ADA)
- Hand assembled in the United States
Product Technologies:
- Solid Brass Construction: Nostalgic Warehouse backsets and rosettes are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.
- Genuine Crystal: Nostalgic Warehouse crystal knobs are constructed of at least 24% lead crystal. Crystal is both stronger and more reflective than glass; displaying a bright sparkle and rainbow prism effect.
Specifications:
- Backset: 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 1-3/4″
- Handing: Reversible, Left or Right
- Knob Diameter: 2-1/8″
- Projection: 2-1/16″
- Rose Height: 6-3/4″
- Rose Width: 3″
- Latch Faceplate: Square Corner
|
Backset |
2-3/4″, 2-3/8″ |
|
Door Thickness |
1-5/8″, 1-3/4″, 1-3/8″ |
|
Handle Height |
2.125in. |
|
Handle Projection |
2.09in. |
|
Handle Width |
2.125in. |
|
Product Weight |
3lbs. |
|
Trim Height |
6.75in. |
|
Trim Width |
3in. |
Dimensions and Measurements
|
Backset |
2-3/4″, 2-3/8″ |
|
Door Thickness |
1-5/8″, 1-3/4″, 1-3/8″ |
|
Handle Height |
2.125in. |
|
Handle Projection |
2.09in. |
|
Handle Width |
2.125in. |
|
Product Weight |
3lbs. |
|
Trim Height |
6.75in. |
|
Trim Width |
3in. |
Included Components
|
28 Degree Latch |
No |
Characteristics and Features
|
Concealed Screws |
No |
|
Handing |
Reversible, Right, Left |
|
Handle Material |
Crystal |
|
Latch Faceplate |
Square Corner |
|
Material |
Crystal, Brass |
|
Solid Construction |
Solid Brass |
|
Trim Design |
Craftsman |
|
Function |
Privacy |
|
Handle Design |
Cobalt Crystal |
|
Knob Shape |
Tulip |
|
Locking Mechanism |
Push Button |
|
Rosette Shape |
Rectangle |
|
Theme |
Craftsman, Vintage |
Warranty and Product Information
|
ADA |
No |
|
Collection |
Cobalt Crystal |
|
Series |
Craftsman |
|
Approved for Commercial Use |
No |
|
Manufacturer Warranty |
5 Year Finish, 5 Year Mechanical |
